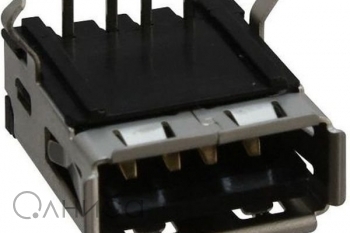

Gender: Гнездо, Voltage Rating: 30 В пост. тока, Contact Material: Фосфористая бронза, Brand: Molex, Minimum Operating Temperature: -40°C, Maximum Operating Temperature: +85°C, Termination Method: Припой, Number of Ports: 1, Current Rating: 1.5A, Series: 67643, Mounting Type: Монтаж на плату в отверстия, Series Number: 67643, Body Orientation: Прямой угол, EU RoHS: Compliant, ECCN (US): EAR99, Part Status: Active, HTS: 8536.69.80.00, Type: USB 2.0 Type A, Number of Terminals: 4, Number of Contacts: 4, Terminal Pitch (mm): 2/2.5, Maximum Current Rating (A): 1.5/Contact, Maximum Voltage Rating: 30VDC, Insulation Resistance (MOhm): 1000, Maximum Contact Resistance (mOhm): 30, Shell Material: Copper Alloy, Shell Plating: Tin Over Nickel, Minimum Operating Temperature (°C): -40, Maximum Operating Temperature (°C): 85, Packaging: Frame, Product Weight (g): 1.86, Product Length (mm): 16, Product Depth (mm): 15.26, Product Height (mm): 7.73, Mounting: Through Hole, Base Product Number: 067643 ->, Connector Type: USB-A (USB TYPE-A), Contact Finish: Gold, Current Rating (Amps): 1.5A, ECCN: EAR99, Features: Board Lock, HTSUS: 8536.69.4040, Insulation Color: Black, Material Flammability Rating: UL94 V-0, Moisture Sensitivity Level (MSL): 1 (Unlimited), Mounting Feature: Horizontal, Operating Temperature: 0В°C ~ 50В°C, Package: Bulk, REACH Status: REACH Unaffected, RoHS Status: ROHS3 Compliant, Shell/Shielding Material: Copper Alloy, Shielding: Shielded, Termination: Solder, Video File: High Definition Multimedia Interface (HDMI), Voltage - Rated: 30VDC, Бренд: Molex
