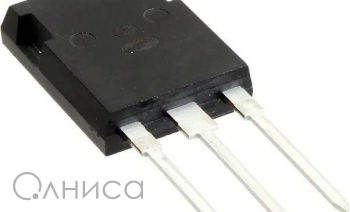

Base Product Number: APT25GR120 ->, Current - Collector (Ic) (Max): 75A, Current - Collector Pulsed (Icm): 100A, ECCN: EAR99, Gate Charge: 203nC, HTSUS: 8541.29.0095, IGBT Type: NPT, Input Type: Standard, Moisture Sensitivity Level (MSL): 1 (Unlimited), Mounting Type: Through Hole, Operating Temperature: -55В°C ~ 150В°C (TJ), Package: Bulk, Package / Case: TO-247-3, Power - Max: 521W, REACH Status: REACH Unaffected, RoHS Status: RoHS Compliant, Supplier Device Package: TO-247, Switching Energy: 742ВµJ (on), 427ВµJ (off), Td (on/off) @ 25В°C: 16ns/122ns, Test Condition: 600V, 25A, 4.3Ohm, 15V, Vce(on) (Max) @ Vge, Ic: 3.2V @ 15V, 25A, Voltage - Collector Emitter Breakdown (Max): 1200V, Бренд: Microchip Technology
