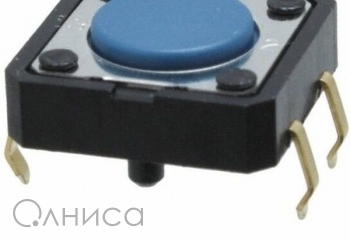

EU RoHS: Compliant, ECCN (US): EAR99, Part Status: Active, Type: Miniature, Pole Throw Configuration: SPST, Actuator Style: Flat Round Button, Switch Configuration: N.O., Maximum Current Rating (A): 0.05@24VDC, Dielectric Strength: 500VAC, Minimum Insulation Resistance (MOhm): 100, Maximum Contact Resistance (mOhm): 100, Electrical Life (Cycles): 10000000, Operating Force (N): 1.27, Actuator Color: Blue, Actuator Length (mm): 0.8, Number of Rows: 2, Row Spacing (mm): 12.5, Mounting: Through Hole, Termination Style: PC Pins, Number of Terminals: 4, Terminal Length (mm): 3.5, Terminal Pitch (mm): 5, Body Orientation: Straight, Minimum Operating Temperature (°C): -25, Maximum Operating Temperature (°C): 70, Packaging: Bag, Body Length (mm): 12, Body Depth (mm): 12, Body Height (mm): 3.5, Product Weight (g): 0.85, Product Length (mm): 12, Product Depth (mm): 13.8, Product Height (mm): 4.3, Contact Plating: Gold, Actuator Height off PCB, Vertical: 4.30mm, Actuator Orientation: Top Actuated, Actuator Type: Standard, Circuit: SPST-NO, Contact Rating @ Voltage: 0.05A @ 24VDC, ECCN: EAR99, HTSUS: 8536.50.9031, Illumination: Non-Illuminated, Mechanical Life: 10,000,000 Cycles, Moisture Sensitivity Level (MSL): 1 (Unlimited), Mounting Type: Through Hole, Operating Force: 130gf, Operating Temperature: -25В°C ~ 70В°C, Outline: 12.00mm x 12.00mm, Package: Bulk, RoHS Status: RoHS Compliant, Series: B3F ->, Switch Function: Off-Mom, Switch Travel: 0.30mm, Бренд: Omron
