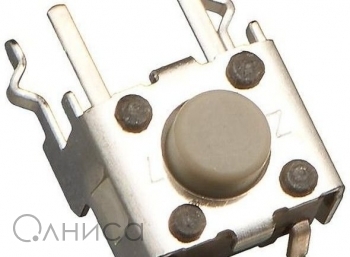

Actuator: Round, Brand: Omron Electronics, Contact Form: SPST, Current Rating: 50 mA, Factory Pack Quantity: 1000, Ground Terminal: Yes, Height: 7.4 mm, Illuminated: Non-Illuminated, Length: 6.25 mm, Manufacturer: Omron, Maximum Operating Temperature: + 70 C, Minimum Operating Temperature: - 25 C, Mounting Direction: Right Angle, Mounting Style: Through Hole, Operating Force: 1.5 N, Operating Temperature Range: - 25 C to + 70 C, Part # Aliases: B3F-3122(N) B3F3122 OMRB3F-3122, Product Category: Tactile Switches, Product Type: Tactile Switches, Series: B3F, Stem Height: 3.85 mm, Subcategory: Switches, Termination Style: Solder Pin, Unit Weight: 0.008818 oz, Voltage Rating DC: 24 VDC, Width: 7.3 mm, Actuating Force: 150гс, Actuator Orientation: Side Actuated, Actuator Style: Round Button, Contact Rating: 50mA at 24VDC, Switch Dimensions (L x W): 7.3mm x 6.3mm, Класс Защиты IP: IP00, Клеммы Переключателя: Пайка, Линейка Продукции: Серия B3F, Максимальный Ток Контакта: 50мА, Монтаж Переключателя: Сквозное Отверстие, Номинальное Напряжение Контакта DC: 24В, Подсветка: Без Подсветки, Рабочая Сила: 1.47Н, Бренд: Omron
