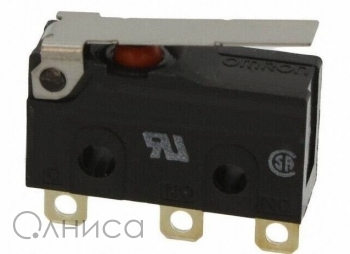

Actuator Type: Lever, Straight, Circuit: SPDT, Current Rating (Amps): 100mA (AC/DC), Differential Travel: 0.031 (0.8mm), ECCN: EAR99, Electrical Life: 200,000 Cycles, HTSUS: 8536.50.9040, Ingress Protection: IP67 - Dust Tight, Waterproof, Mechanical Life: 5,000,000 Cycles, Moisture Sensitivity Level (MSL): 1 (Unlimited), Mounting Type: Chassis Mount, Operating Force: 60gf, Operating Position: 0.345 (8.8mm), Operating Temperature: -40В°C ~ 85В°C, Overtravel: 0.040 (1.0mm), Package: Tray, Release Force: 6.118gf, RoHS Status: RoHS Compliant, Series: D2SW ->, Switch Function: On-Mom, Termination Style: Solder Lug, Voltage Rating - AC: 125V, Voltage Rating - DC: 30V, EU RoHS: Compliant, ECCN (US): EAR99, Part Status: Active, HTS: 8536.50.90.40, Switch Configuration: N.O./N.C., Actuator Style: Hinge Lever, Pole Throw Configuration: SPDT, Maximum Current Rating (A): 0.1@125VAC 30VDC, Electrical Life (Cycles): 200000, Mechanical Life (Cycles): 5000000, Maximum Movement Differential (mm): 0.8, Mounting: Screw Mount, Body Orientation: Straight, Minimum Operating Temperature (°C): -40, Maximum Operating Temperature (°C): 85, Body Length (mm): 19.8, Body Depth (mm): 6.4, Body Height (mm): 10.6, Operating Force (N): 0.59, Бренд: Omron
