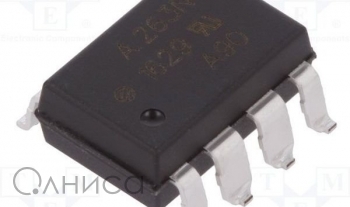

Base Product Number: HCPL-063 ->, Common Mode Transient Immunity (Min): 10kV/Вµs, Current - DC Forward (If) (Max): 15mA, Current - Output / Channel: 50mA, Data Rate: 15MBd, ECCN: EAR99, HTSUS: 8541.40.8000, Input Type: DC, Inputs - Side 1/Side 2: 2/0, Moisture Sensitivity Level (MSL): 1 (Unlimited), Mounting Type: Surface Mount, Number of Channels: 2, Operating Temperature: -40В°C ~ 85В°C, Output Type: Open Collector, Schottky Clamped, Package: Tube, Package / Case: 8-SOIC (0.154, 3.90mm Width), Propagation Delay tpLH / tpHL (Max): 75ns, 75ns, REACH Status: REACH Unaffected, Rise / Fall Time (Typ): 24ns, 10ns, RoHS Status: RoHS non-compliant, Supplier Device Package: 8-SO Tall, Voltage - Forward (Vf) (Typ): 1.5V, Voltage - Isolation: 3750Vrms, Voltage - Supply: 2.7V ~ 3.6V, 4.5V ~ 5.5V, Бренд: Broadcom Limited
