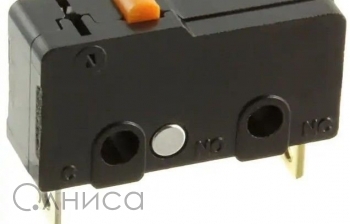

Actuator Type: Round (Pin Plunger), Circuit: SPST-NC, Current Rating (Amps): 100mA (AC/DC), Differential Travel: 0.004 (0.1mm), ECCN: EAR99, Electrical Life: 200,000 Cycles, HTSUS: 8536.50.9040, Ingress Protection: IP40, Mechanical Life: 30,000,000 Cycles, Moisture Sensitivity Level (MSL): 1 (Unlimited), Mounting Type: Chassis Mount, Operating Force: 150gf, Operating Position: 0.330 (8.4mm), Operating Temperature: -25В°C ~ 85В°C, Overtravel: 0.020 (0.5mm), Package: Bulk, Pretravel: 0.020 (0.5mm), Release Force: 25gf, RoHS Status: RoHS Compliant, Series: SS ->, Switch Function: On-Mom, Termination Style: Solder Lug, Voltage Rating - AC: 125V, Voltage Rating - DC: 30V, Бренд: Omron
