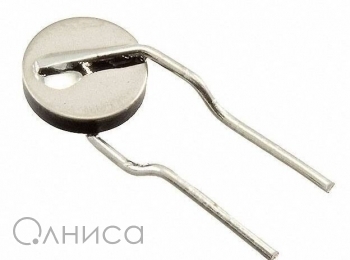

Approval Agency: CSA, TUV, UL, Current - Hold (Ih) (Max): 145mA, Current - Max: 3A, Current - Trip (It): 290mA, ECCN: EAR99, Height - Seated (Max): 0.433 (11.00mm), HTSUS: 8533.40.8070, Lead Spacing: 0.200 (5.08mm), Moisture Sensitivity Level (MSL): 1 (Unlimited), Mounting Type: Through Hole, Operating Temperature: -40В°C ~ 85В°C, Package: Tape & Reel (TR)Cut Tape (CT), Package / Case: Radial, Disc, Resistance - Initial (Ri) (Min): 3 Ohms, Resistance - Post Trip (R1) (Max): 12 Ohms, RoHS Status: ROHS3 Compliant, Series: PolySwitchВ®, TRF250 ->, Size / Dimension: 0.256 L x 0.181 W (6.50mm x 4.60mm), Time to Trip: 2.5s, Type: Polymeric, Video File: Building Automation – Protect/Sense/ControlBasic, Voltage - Max: 60V (250V Int), Бренд: Littelfuse
