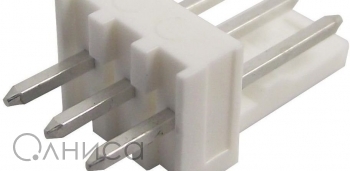

EU RoHS: Compliant, ECCN (US): EAR99, Part Status: Active, HTS: 8536.69.40.40, Type: Wire to Board, Gender: HDR, Number of Contacts: 3, Number of Rows: 1, Termination Method: Solder, Terminal Pitch (mm): 2.54, Body Orientation: Straight, Maximum Current Rating (A): 4/Contact, Maximum Voltage Rating: 500V, Insulation Resistance (MOhm): 1000, Maximum Contact Resistance (mOhm): 10, Minimum Operating Temperature (°C): -40, Maximum Operating Temperature (°C): 80, Mating Cycle (Cycles): 25, Packaging: Bag, Product Weight (g): 0.315, Product Length (mm): 7.62, Product Depth (mm): 5.8, Product Height (mm): 11.7, Tradename: KK®, Contact Plating Thickness: 5.08um, Tail Length (mm): 3.56, Mounting: Through Hole, Вес, г: 0.34, Бренд: Molex
