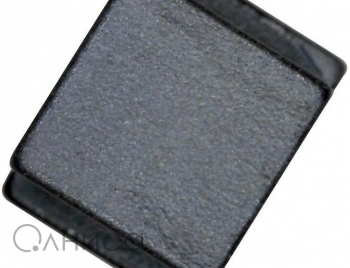

Base Product Number: LQH5BPB ->, Current - Saturation (Isat): 2A, Current Rating (Amps): 1.6A, DC Resistance (DCR): 127.2mOhm Max, ECCN: EAR99, Frequency - Self Resonant: 25MHz, Height - Seated (Max): 0.087 (2.20mm), HTSUS: 8504.50.8000, Inductance: 10ВµH, Inductance Frequency - Test: 100kHz, Material - Core: Ferrite, Moisture Sensitivity Level (MSL): 1 (Unlimited), Mounting Type: Surface Mount, Operating Temperature: -40В°C ~ 105В°C, Package: Tape & Reel (TR)Cut Tape (CT)Digi-ReelВ®, Package / Case: Nonstandard, RoHS Status: ROHS3 Compliant, Series: LQH5 ->, Shielding: Shielded, Size / Dimension: 0.197 L x 0.197 W (5.00mm x 5.00mm), Supplier Device Package: 2020 (5050 Metric), Tolerance: В±20%, Type: Wirewound, Бренд: Murata Electronics
