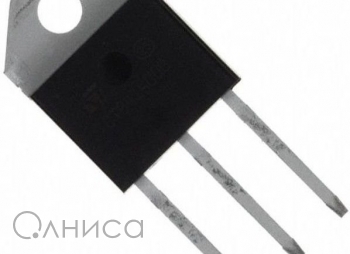

EU RoHS: Compliant with Exemption, ECCN (US): EAR99, Part Status: Active, HTS: 8541.30.00.80, Maximum Rate of Rise of Off-State Voltage (V/us): 500(Min), Maximum Rate of Rise of On-State Current (A/us): 200, Maximum Gate Trigger Voltage (V): 2, Maximum Gate Trigger Current (mA): 50, Surge Current Rating (A): 950, Maximum Holding Current (mA): 80, Repetitive Peak Reverse Voltage (V): 800, Peak On-State Voltage (V): 1.8@130A, Repetitive Peak Forward Blocking Voltage (V): 800, Rated Average On-State Current (A): 41, Repetitive Peak Off-State Current (mA): 0.02, Phase Control: No, Minimum Operating Temperature (°C): -40, Maximum Operating Temperature (°C): 125, Automotive: No, Pin Count: 3, Supplier Package: TO-218AC, Standard Package Name: TO-218-AC, Military: No, Mounting: Through Hole, Package Height: 12.62(Max), Package Length: 16(Max), Package Width: 4.78(Max), PCB changed: 3, Lead Shape: Through Hole, Вес, г: 9.072, Бренд: Littelfuse
